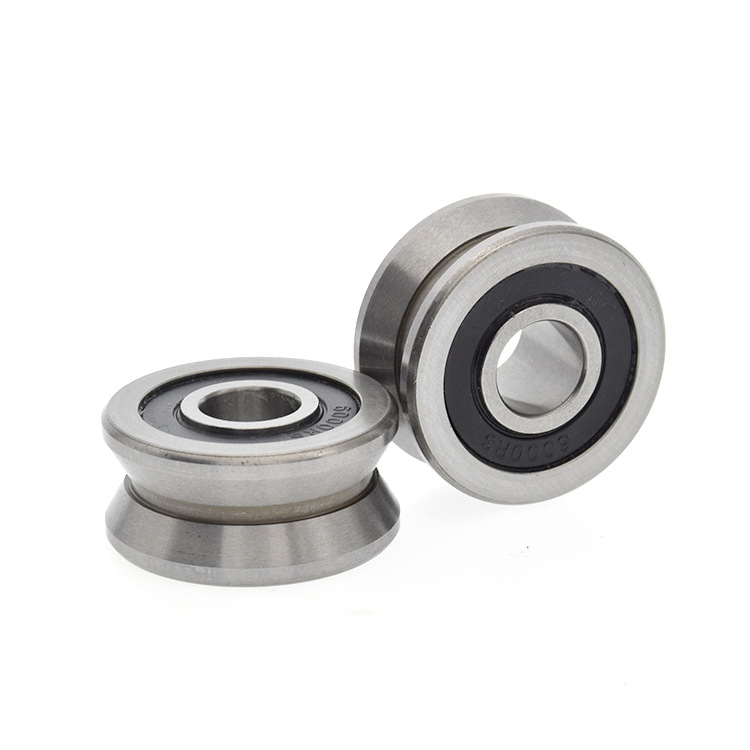

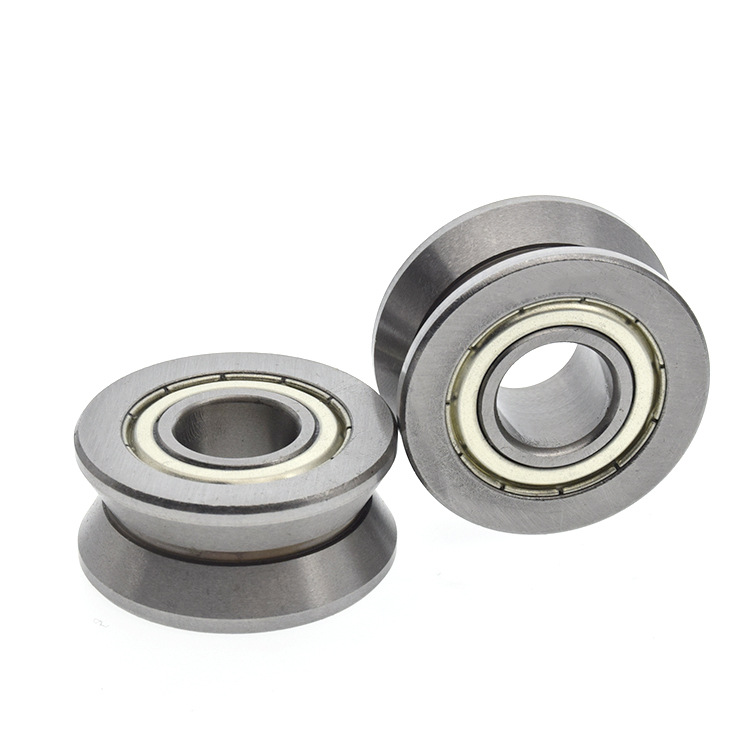

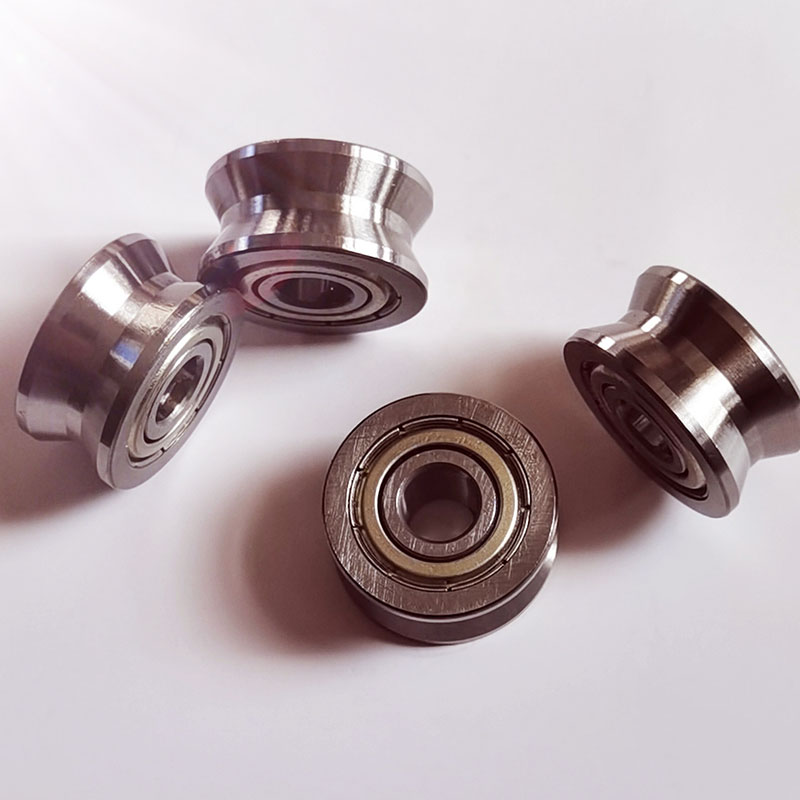

LV202-38ZZ Track Roller Bearing

• LV series bearings can be widely used in cylindrical guide rails or 120° V-type guide rails. Different as LFR series rollers, LV series bearings have strong adaptability to the size of guide rails. Each specification can be adapted to a wide range of guide rail diameters, and can be widely used in heavy-duty guide rails, mobile equipment, straightening machinery, etc.

LV202-38ZZ V-38 RV202/15.38-10 15*38*17 Specification

1. Torlerance :Bore diameter +0/-0.008mm, outer diameter ±0.013mm, width +0/-0.008mm.

2. We have two material such as  AISI52100 and stainless steel AISI440C.

3. We have LV202-38ZZ,LV202-38-2RS, with metel shileds and rubber seals .

4. Shell Alvania S2 or Customer-sperified lubricants.

LV guide wheels bearings adopts the internal structure design of double-row angular contact ball bearing and thickened outer ring, which makes the bearing have better load-bearing capacity. The bearings are made of bearing steel, heat treated, precision ground and filled with long-life multi-purpose grease.

Features: small resistance, long life, easy installation, wide application.

Dustproof method: double-sided sealing, ZZ metal dust cover; 2RS rubber dust cover.

LV Track Rollers have Widely Application:

• Automotive Industry: For high-performance components such as wheel hubs, electric motors, and suspension systems, where durability and efficiency are critical.
• Aerospace: In engines, landing gear, and other aircraft components that require high load capacity and reliability under extreme conditions.
• Industrial Machinery: In conveyors, robotics, and manufacturing equipment where compact design, high load-bearing capacity, and low maintenance are essential.
• Energy Sector: For wind turbines, high-speed motors, and other renewable energy equipment that require corrosion resistance and high efficiency.
• Heavy Equipment: In construction machinery, mining equipment, and agricultural machinery where strength and durability are key to performance.

We can produce LV series bearings as below series:

LV20/7ZZ,LV20/10ZZ,LV201ZZ,LV201-14ZZ,LV202-38ZZ,LV202-40ZZ,LV202-41ZZ,LV203ZZ,LV204-57ZZ,LV204-58ZZ,

LV20/7 2RS,LV20/10 2RS,LV 2012RS,LV201-14 2RS, LV202-38 2RS,LV202-40 2RS,LV202-412RS,LV203 2RS, LV204-57 2RS, LV204-58 2RS, etc.

For more information about Wire Straightening Bearing just feel free to contact with us free ,we can provide free sample for you to test before order.
