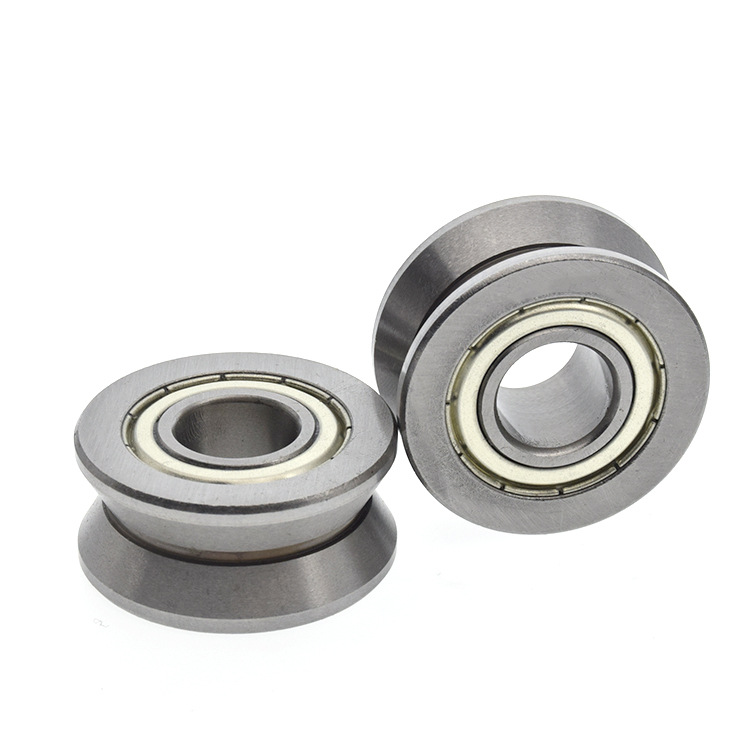

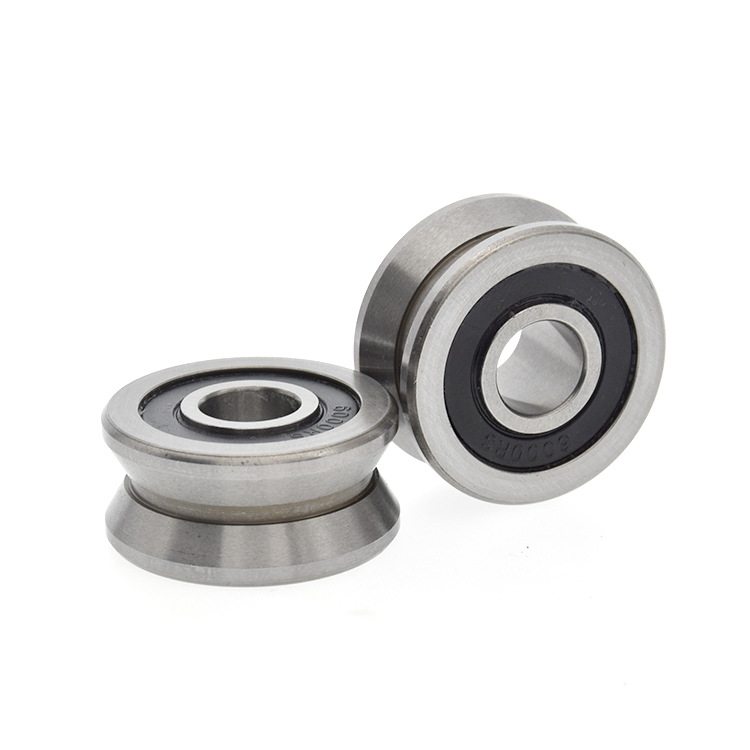

LV20/8-ZZ LV20/8-2RS V Groove Sealed Track Roller Bearings

1.Full supply for LV(V) Series Track Roller.

2.We have Chrom steel and stainless steel.

3.Free sample can be provide before order.

4.Different type of bearing available ,we can have one stop service .

Item No :
LV20/8-ZZ LV20/8-2RS
Order(MOQ) :
500
Payment :
30%TT in advance ,70%TT after complete production
Product Origin :
China
Shipping Port :
Xiamen,Ningbo,Shanghai
Lead Time :
5-7 days
Weight :
0.15 KGS

Product Details

LV series bearings can be widely used in cylindrical guide rails or 120° V-type guide rails. Unlike LFR series rollers, LV series bearings have strong adaptability to the size of guide rails. Each specification can be adapted to a wide range of guide rail diameters, and can be widely used in heavy-duty guide rails, mobile equipment, straightening machinery, etc.

LV20/8-ZZ LV20/8-2RS Bearings Specification

Part No.	LV20/8-ZZ ，LV20/8-2RS
Material	Chrome steel, or stainless steel
Dimension	83014mm
Working Temperature	-30° to 120°C;for other high temperature just contact with us

LV20/8 Bearing adopts the internal structure design of double-row angular contact ball bearing and thickened outer ring, which makes the bearing have better load-bearing capacity. The bearings are made of bearing steel, heat treated, precision ground and filled with long-life multi-purpose grease.

Features: small resistance, long life, easy installation, wide application.

Dustproof method: double-sided sealing, ZZ metal dust cover; 2RS rubber dust cover.

LV Track Rollers have Widely Application:

They can use for Linear guide systems,Conveyor tracking wheels,Packaging machinery,Automated material handling,3D printer gantry systems

We can produce LV series bearings as below series:

LV20/7ZZ,LV20/10ZZ,LV201ZZ,LV201-14ZZ,LV202-38ZZ,LV202-40ZZ,LV202-41ZZ,LV203ZZ,LV204-57ZZ,LV204-58ZZ,

LV20/7 2RS,LV20/10 2RS,LV 2012RS,LV201-14 2RS, LV202-38 2RS,LV202-40 2RS,LV202-412RS,LV203 2RS, LV204-57 2RS, LV204-58 2RS, etc.

Track Roller No.	Weight ≈(g)	Dimensions (mm)								Load Ratings
Track Roller No.	Weight ≈(g)	dw	d	D	b	C	A	α	rs	Cw (KN)	Cow(KN)
LV 20/7 ZZ	17	10	7	22	11	11	14.5	120	0.3	3.78	2.05
LV 20/8 ZZ	49	10	8	30	14	14	18.1	120	0.3	5.13	2.67
LV 202-38 ZZ	87	10	15	38	17	17	22.25	120	0.5	8.47	5.37
LV 202-40 ZZ	110	10	15	40	18	18	22	120	0.5	8.47	5.37
LV 201 ZZ	130	20	12	41	20	20	28	120	0.3	8.47	5.37
LV 201-14.2RS	107	14	12	39.9	20.1	18	24	100	0.5	8.9	5
LV 202-41 ZZ	116	20	15	41	20	20	28	120	0.5	8.47	5.37
LV 203 ZZ	325	20	17	58	25	25	35	120	0.5	14.66	9.1
LV 204-57 ZZ	290	30	20	57	22	22	41	120	0.6	14.66	9.1
LV 204-58 ZZ	310	30	20	58	25	25	41	120	0.6	14.66	9.1

MORE BEARINGS is professional supplier of bearings and rollers;With a commitment to quality and innovation, we offer a wide range of bearing types, including V groove ball bearings, U groove ball bearings ,customized bearings ... Our streamlined process allows for one-step bearing purchase, simplifying procurement for our clients. Additionally, we excel in providing customized solutions tailored to specific requirements, be it material selection, dimensions, or unique shapes. Count on us for top-notch bearings, personalized service, and seamless transactions for a comprehensive manufacturing experience.

Here is our bearings production video for your reference .

For more information about Wire Straightening Bearing just feel free to contact with us free ,we can provide free sample for you to test before order.

Hot Tags : LV202-41 Track Roller Bearing Track Roller with V-groove profile LV202-41ZZ Linear Guide Bearing Track Rollers with 120° V groove V-Groove Guide Roller Bearing LV(V) Series Track Roller Bearings
